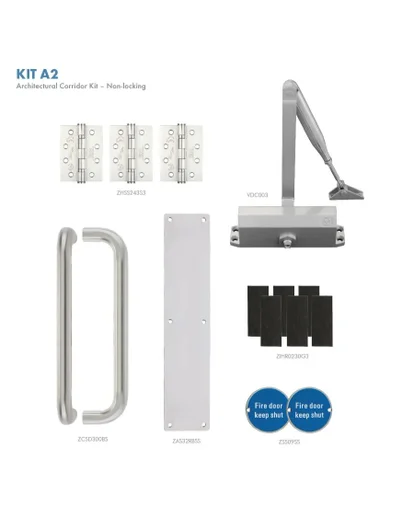

Pull handle Non Locking Fire Door Pack COMPLETE consisting of:

Door Closer size 3 silver, 3no Grade 13 100mm Hinges SSS, 1no Pull Handle 300mm SSS, 1no Push Plate radiused cornered 350x75mm SSS, 2no Fire Door Keep Shut Signage SSS, 6no Hinge Intumescent

Available for FD30 & FD60 timber doors

Levers Locking Fire Door Pack COMPLETE consisting of:

Door Closer size 3 silver, 3no Grade 13 100mm Hinges SSS, 2no Euro Escutcheons SSS, 1set RTD Levers SSS, 1no UK Euro Sashlock 76mm SS, 1no Euro Cylinder & Turn sc 70mm, 2no Fire Door Keep Shut Signage SSS, 6no Hinge Intumescent, 1no UK Sashlock Intumescent

Available for FD30 & FD60 timber doors

Levers Non Locking Fire Door Pack COMPLETE consisting of:

Door Closer size 3 silver, 3no Grade 13 100mm Hinges SSS, 1set RTD Levers SSS, 1no UK Latch 76mm SS, 2no Fire Door Keep Shut Signage SSS, 6no Hinge Intumescent, 1no UK Latch Intumescent

Available for FD30 & FD60 timber doors

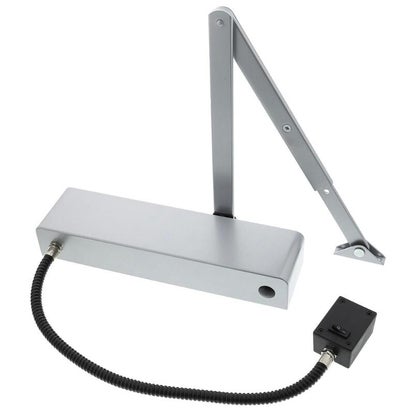

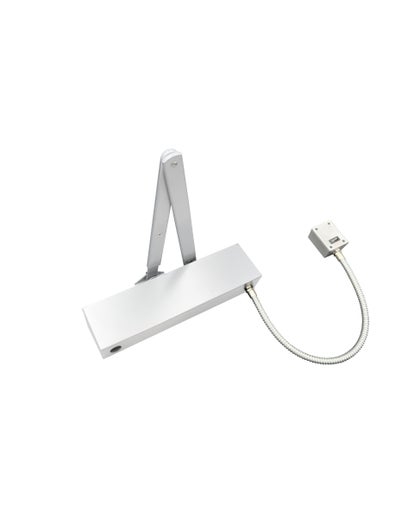

Universal hold open or swing free Electro mag door closer

​EN Size 4 suitable to 1100mm door width 80kg weight

Sweep & latch speed can be adjusted

Fire tested to EN1634. These particular electromagnetic door closers can be applied to timber fire doors for up to 120 minutes fire resistance

BS8300 / Equality Act / Approved Doc M

Due to its hold-open and swing-free functions, it is suitable for applications where ease-of-access is needed - therefore, it complies with the Equalities Act

Ideal for care homes, school environments & public spaces

Slimline semi-radius ​cover (available in Silver, SSS satin stainless steel, PSS polished stainless steel, PB polished brass) other finishes are available (upon request)

CE Marked fig 1 / fig 6 / fig 61

Certifire APPROVED

***2 year GUARANTEE***

*PLEASE NOTE THAT AS OF DECEMBER 2024, DOOR CLOSER BODY WAS REVISED BY MANUFACTURER (new all as shown in photograph and information at www.bossdoorcontrols.com)*

 New Body TS7.004 – Fixing Template 1

**HOWEVER, if you are looking to replace an EXISTING old type model of the TS7004, please contact our company directly for further information - we have limited current stocks for PSS polished stainless steel and PB polished brass ONLY closer types**

KEY FEATURES

• Fixed power size 3
• Aluminium
• Scissor / Steel
• Electro mag hold open or swing free, closing, latching speed
• 60kgs (door mount pull / door mount push)
• 950mm (door mount pull / door mount push)
• 24Vdc
• Successfully tested in accordance with the requirements of BS EN 1155: 1997
• Successfully fire tested in accordance with the requirements of BS EN1634-1, suitable for use on 30, 60, 90 and 120 minute timber fire doors
• CE Marked (Certificate AE7863)
• UKCA marked (Certificate AE7860)
• CERTIFIRE approved (Certificate CF6104)
• 2-year guarantee
• Semi-radiused
• Square
• Silver (SE)
• Satin Stainless Steel (SSS)

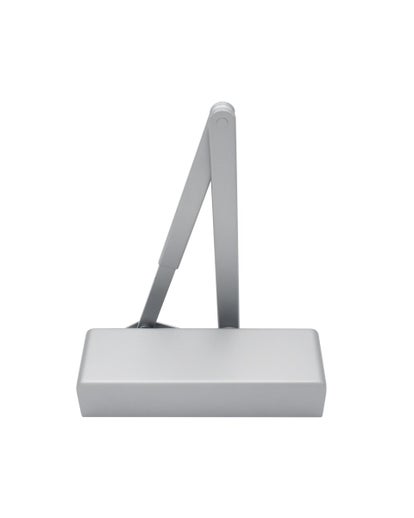

Variable power size 2 - 4

with backcheck

Rack & pinion mechanism 248mm x 52mm x 42mm

​Suitable for applications with timber doors in frequent use & backcheck is required


10 year guarantee
​
Semi-radius ​cover

UKCA  fig 1 / fig 6 / fig 61
CE        fig 1 / fig 6 / fig 61
Certifire Approved CF6470

Available in Silver, SSS, PSS, PB

KEY FEATURES

• Power adjustable 2-4, by spring
• Scissor / Steel
• 80kgs (door mount pull, frame mount push) 60kgs (door mount push)
• 1100mm (door mount pull, frame mount push) 950mm (door mount push)
• Successfully tested in accordance with the requirements of BS EN1154: 1997
• Successfully fire tested in accordance with the requirements of BS EN1634-1, suitable for use on 30, 60, 90 and 120 minute timber fire doors
• UKCA marked (Certifire AD7792)
• CE marked (Certificate AD7994)
• CERTIFIRE approved (Certificate CF6103)
• Semi-radiused
• Available in silver, SSS, PB, SN, PN, SB, PVD black

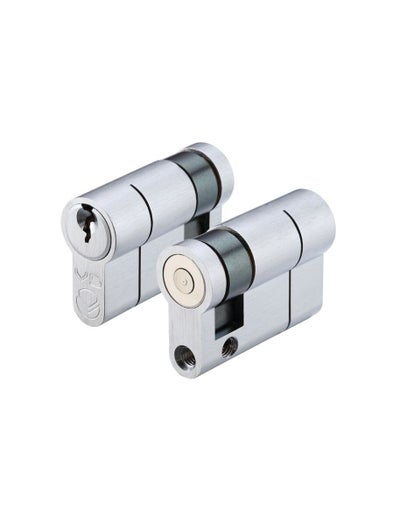

KEY FEATURES

• Fire door 30-60
• Anti-drill
• Anti-pick
• Break off system
• single euro cylinder sc 45mm
• cylinder & turn euro sc 70mm
• double cylinder euro sc 70mm
• all available "to differ" under a new master keyed suite
• *remember to order master key(s)*
